CSE411: Introduction to Compilers

Introduction to Parsing

Jooyong Yi (UNIST)

Lexing and Parsing

        position  =  initial  +  rate   *   60
                           ↓
        |------------------------------------|
        |      Lexical Analyzer (Lexer)      |
        |------------------------------------|
                           ↓
        <id, 1> <=> <id, 2> <+> <id, 3> <*> <int, 60>
                           ↓
        |------------------------------------|
        |      Syntax Analyzer (Parser)      |
        |------------------------------------|
                           ↓
                       =
                      / \
                <id,1>   +
                        / \
                   <id,2>  *
                          / \
                    <id,3>   <int,60>

Why a Tree?

• Consider: 1 + 2 * 3

Why a Tree?

• Consider: 2 * 3 + 4

         *                    +
        / \                  / \
       2   +                *   4
          / \              / \
         3   4            2   3

How to write a parser?

Synthesizing a Parser

              Specification for the parser
                           ↓
                    |-------------|
                    |    Parser   |
                    | Synthesizer |
                    |-------------|
                           |
                      synthesizes
                           ↓
                       |--------|
a sequence of tokens → | Parser | → parse tree
                       |--------|

Parser Synthesizer Examples

• Yacc (Yet Another Compiler Compiler)

> man yacc

YACC(1)                                                                User Commands                                                                YACC(1)

NAME
       yacc - GNU Project parser generator

SYNOPSIS
       yacc [OPTION]... FILE

DESCRIPTION
       Yacc (Yet Another Compiler Compiler) is a parser generator.  This version is a simple wrapper around bison(1).  It passes option -y, --yacc to activate
       the upward compatibility mode. See bison(1) for more information.

What to Give as the Specification for Parser?

What to Give as the Specification for Parser?

start : exp EOF
exp: INT | ID | exp PLUS exp | '(' exp ')'

INT : '0' | ('1'..'9') ('0'..'9')*
ID : ( 'a'..'z' | 'A'..'Z' | '_' | '$' ) ( 'a'..'z' | 'A'..'Z' | '_' | '0'..'9' | '$' )*
PLUS : '+'

What to Give as the Specification for Parser?

start : exp EOF
exp: INT | ID | exp PLUS exp | '(' exp ')'

INT : '0' | ('1'..'9') ('0'..'9')*
ID : ( 'a'..'z' | 'A'..'Z' | '_' | '$' ) ( 'a'..'z' | 'A'..'Z' | '_' | '0'..'9' | '$' )*
PLUS : '+'

Is it a regular expression?

What to Give as the Specification for Parser?

start : exp EOF
exp: INT | ID | exp PLUS exp | '(' exp ')'

INT : '0' | ('1'..'9') ('0'..'9')*
ID : ( 'a'..'z' | 'A'..'Z' | '_' | '$' ) ( 'a'..'z' | 'A'..'Z' | '_' | '0'..'9' | '$' )*
PLUS : '+'

Is it a regular expression?

  - a: An ordinary character stands for itself.
  - "ab": Quotation, a string in quotes stands for itself literally. E.g., "if"
  - ε: The empty string
  - M | N: Alternation, choosing from M or N.
  - [0-9]: 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9
  - M N: Concatenation, an M followed by an N.
  - M*: Repetition (zero or more times)
  - M+: Repetition (one or more times)
  - M?: Optional, zero or one occurrences of M.

What to Give as the Specification for Parser?

start : exp EOF
exp: INT | ID | exp PLUS exp | '(' exp ')'

INT : '0' | ('1'..'9') ('0'..'9')*
ID : ( 'a'..'z' | 'A'..'Z' | '_' | '$' ) ( 'a'..'z' | 'A'..'Z' | '_' | '0'..'9' | '$' )*
PLUS : '+'

Is it a regular expression?

• The language is a prototypical example of a language that cannot be described by a regular expression.

Which spec language can we use?

start : exp EOF
exp: INT | ID | exp PLUS exp | '(' exp ')'

INT : '0' | ('1'..'9') ('0'..'9')*
ID : ( 'a'..'z' | 'A'..'Z' | '_' | '$' ) ( 'a'..'z' | 'A'..'Z' | '_' | '0'..'9' | '$' )*
PLUS : '+'

Context-Free Grammar (CFG)

start : exp EOF
exp: INT | ID | exp PLUS exp | '(' exp ')'

• CFG
  • : a finite set of non-terminals (e.g., exp).
  • : a finite set of terminal symbols (e.g., '(', ')', PLUS)
  • : a start non-terminal (e.g., start)
  • : a finite set of productions.
    • Each production has the form
      • where and

Context-Free Grammar (CFG)

• A grammar to describe a formal (i.e., non-ambiguous) language such as a programming language.
• Invented by Noam Chomsky.

Context-Free Grammar vs. Context-Sensitive Grammar

Context-Free Grammar vs. Context-Sensitive Grammar

• CFG , CSG
  • : a finite set of non-terminals (e.g., exp).
  • : a finite set of terminals (e.g., '(', ')', PLUS)
  • : a start non-terminal (e.g., start)
  • : a finite set of productions.
    • CFG
      • Each production has the form
        • where and
    • CSG
      • Each production has the form
        • where , and

CFG as a Parser Specification Language

                  CFG
                   ↓
            |-------------|
            |    Parser   |
            | Synthesizer |
            |-------------|
                   |
              synthesizes
                   ↓
              |--------|
    program → | Parser | → parse tree
              |--------|

CFG and Pushdown Automata (PDA)

Theory: For any context-free grammar , there exists an non-deterministic pushdown automata (NPDA) accepting .

Non-deterministic PDA (NPDA)

Input
□□□□□□□□
  ↓
|---------|    Stack
| Control | ⇔  |__|
|  Unit   |    |__|
|---------|    |__|

Non-deterministic PDA (NPDA)

• NPDA
  • : a finite set of internal states of the control unit
  • : the input alphabet
  • : the stack alphabet
  • : the transition function
  • : the initial state of the control unit
  • : the stack start symbol
  • : the set of final states

Acceptance Condition of NPDA

• Suppose
• if and
  1. When all symbols of the input are consumed, the final state is reached.
  2. The state of the stack is irrelevant to the acceptance.

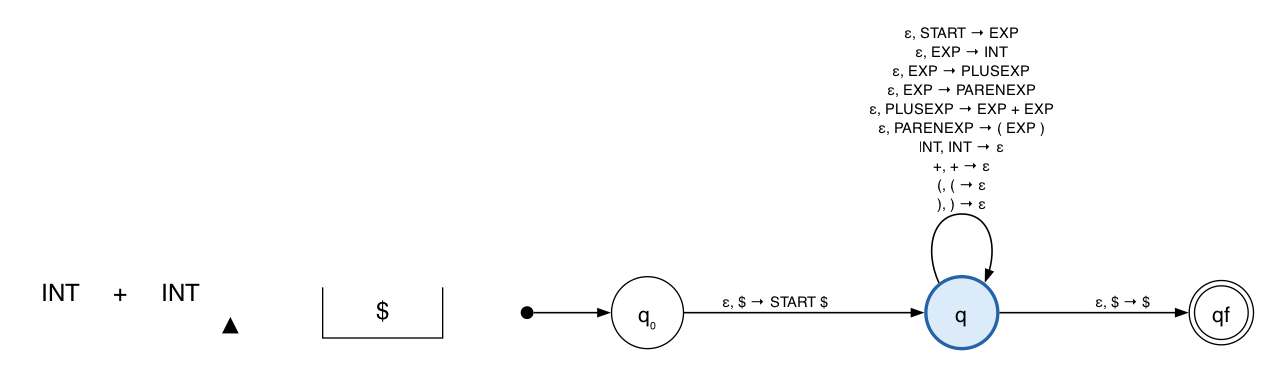

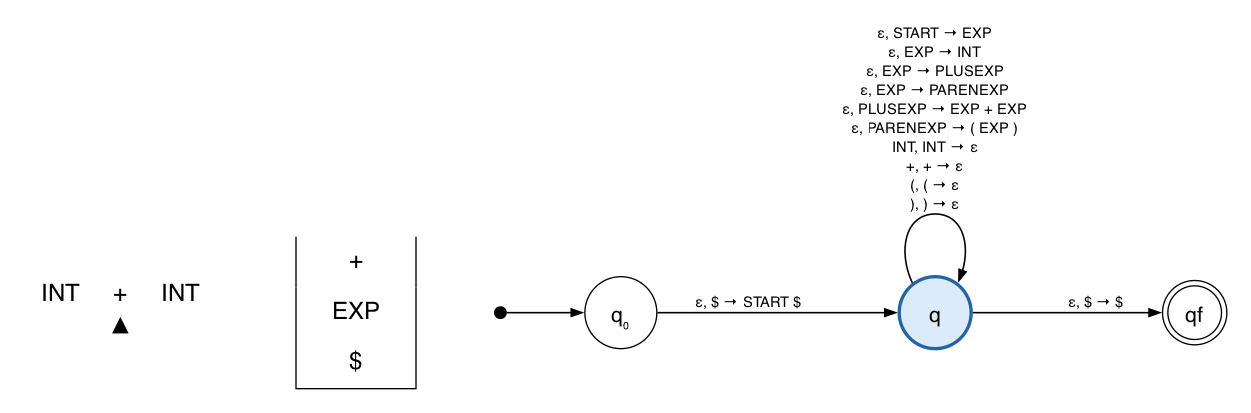

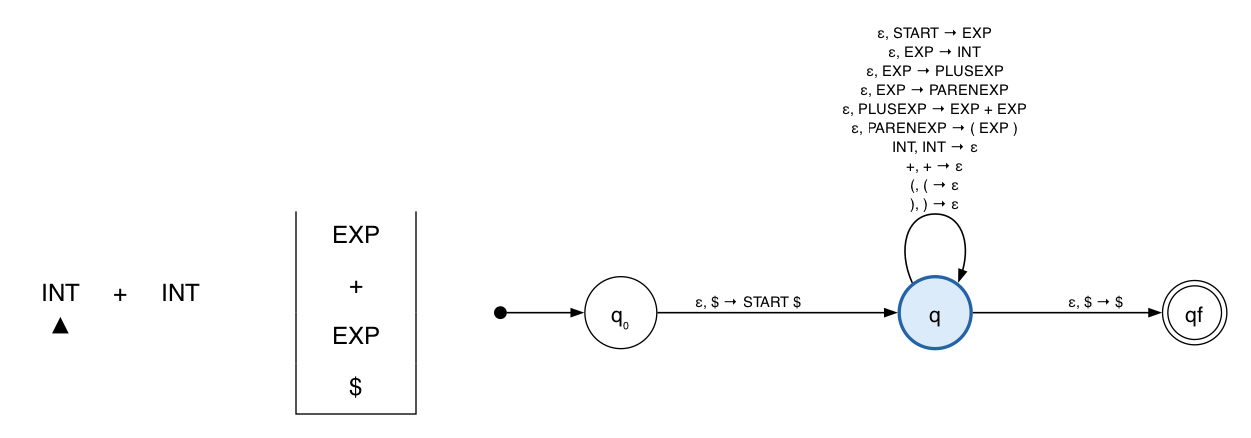

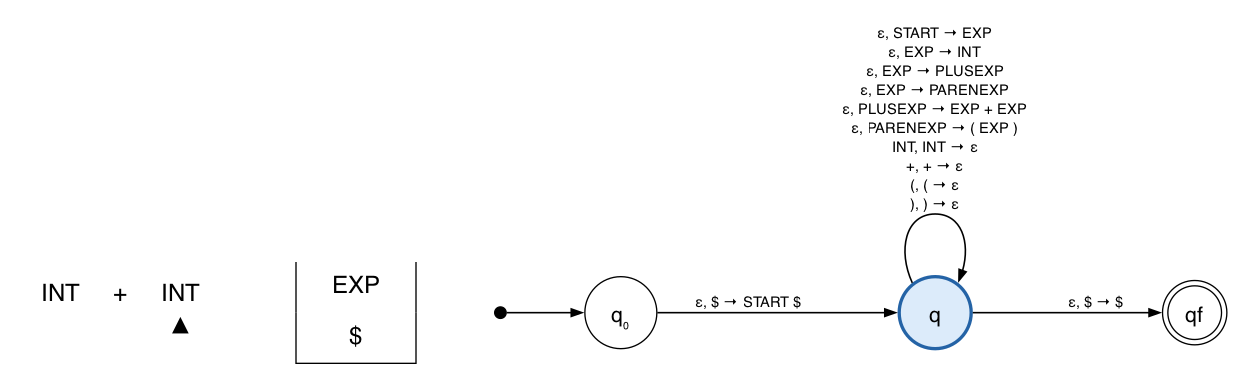

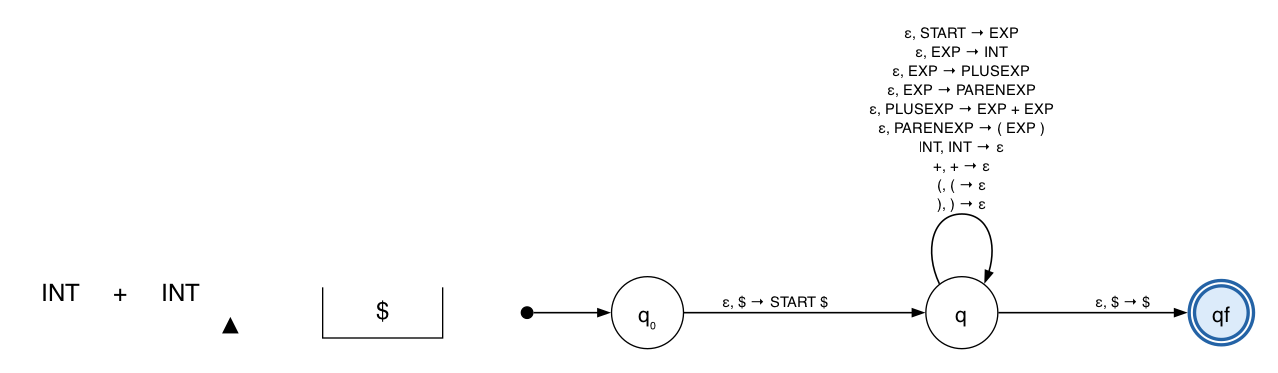

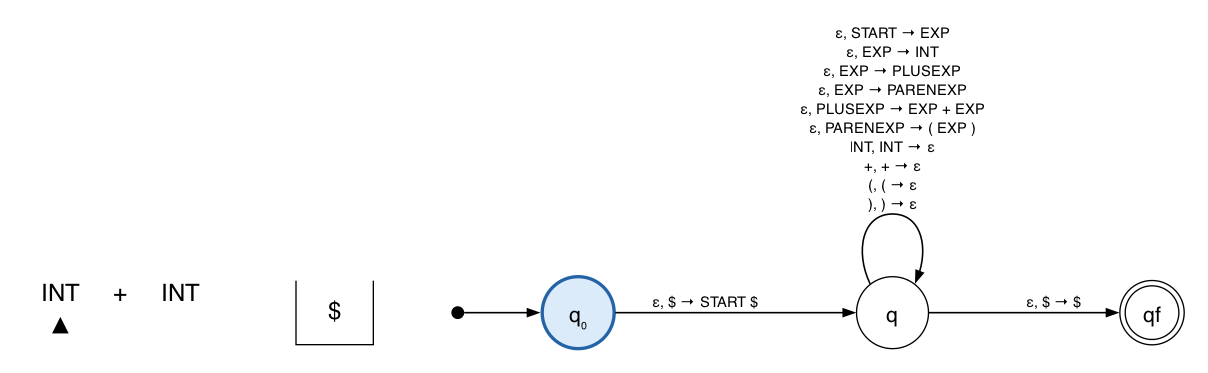

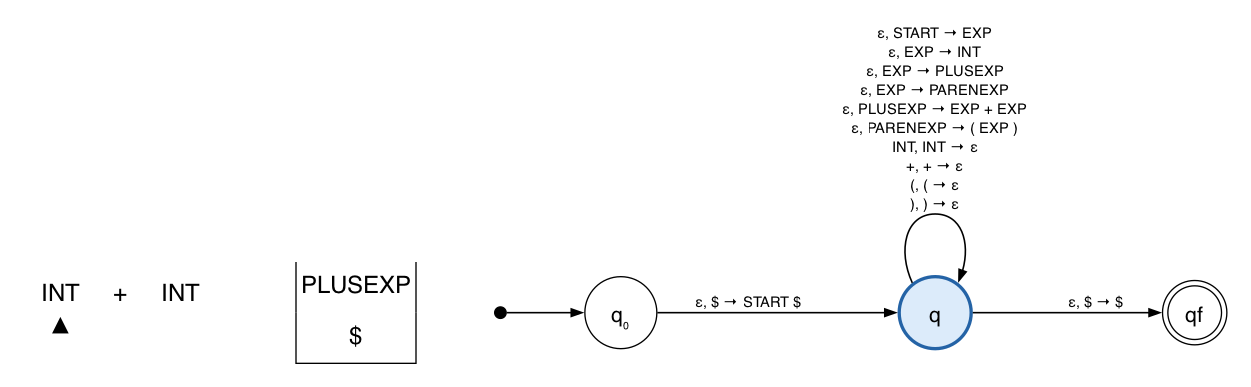

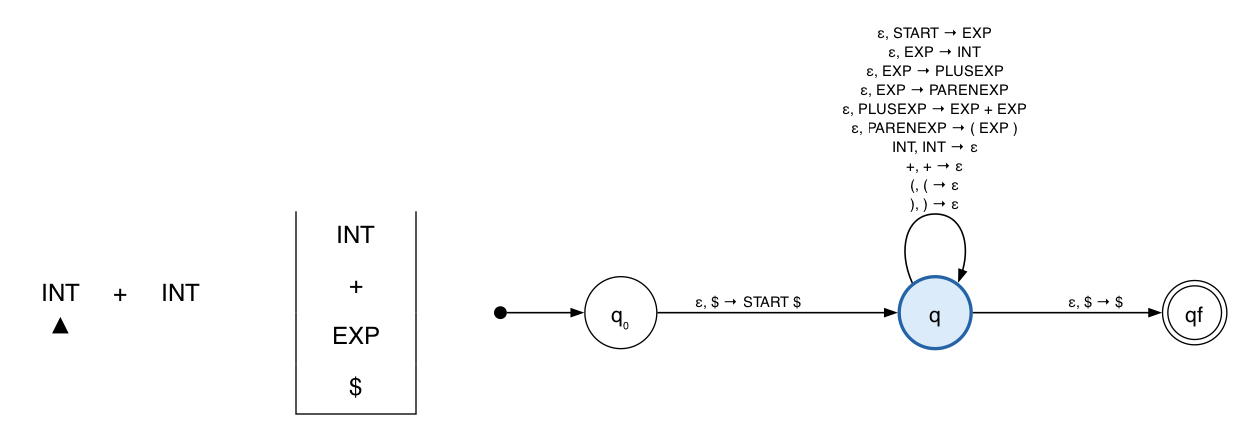

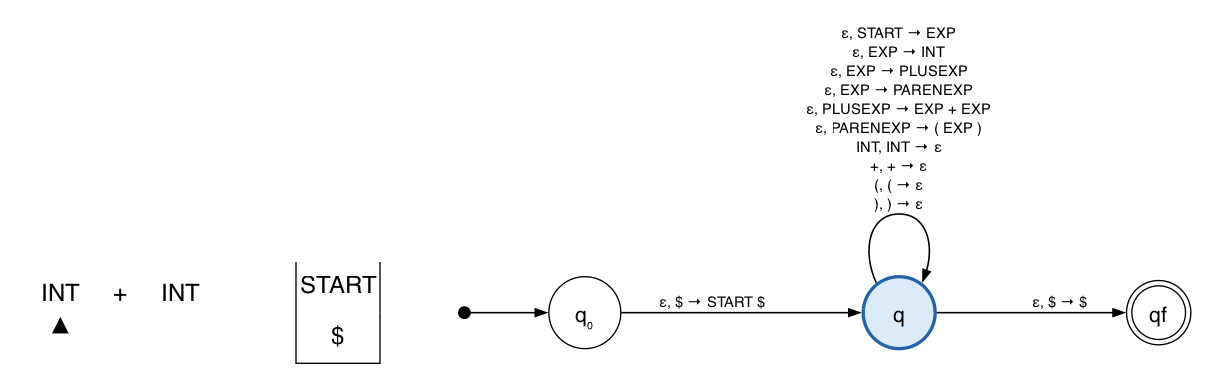

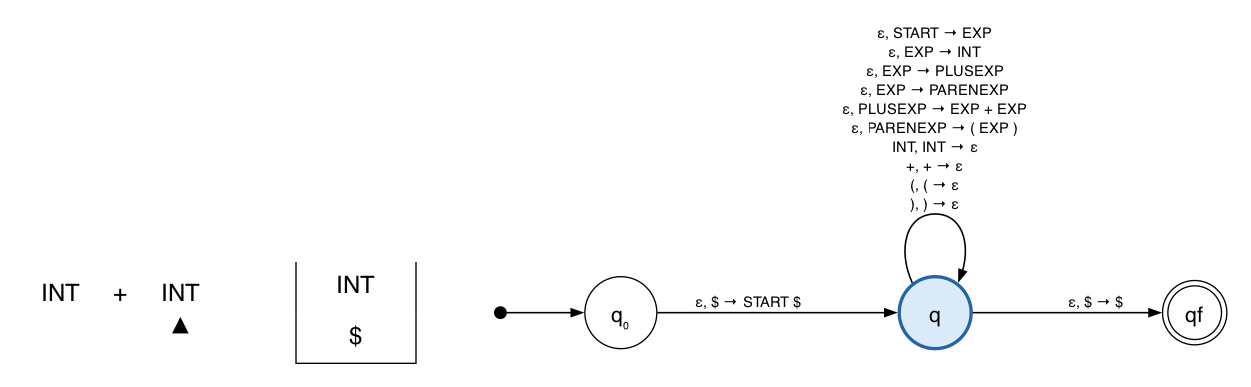

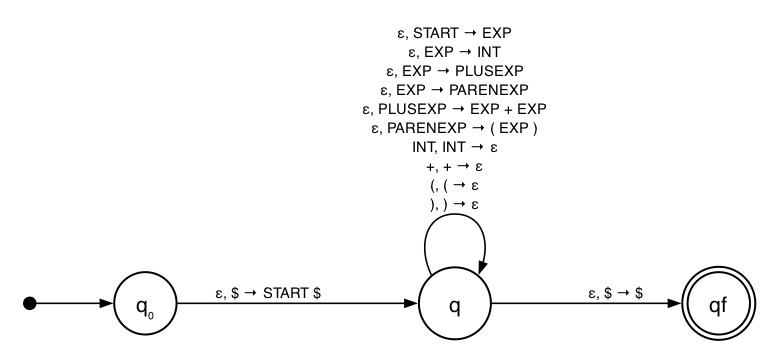

NPDA Example

• NPDA

• Which input does accept?

NPDA Example

• NPDA

• Which input does accept?

Deterministic PDA (DPDA)

• DPDA
  • : a finite set of internal states of the control unit
  • : the input alphabet
  • : the stack alphabet
  • : the transition function
    • If is defined, then should not be defined for every .
  • : the initial state of the control unit
  • : the stack start symbol
  • : the set of final states

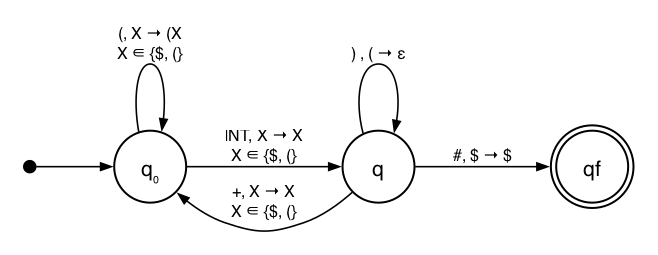

CFG NPDA DPDA

• This does not work. Why?

CFG NPDA DPDA

• This does not work. Why?

• NPDA -X-> DPDA

  • The expressive power of NPDA and DPDA are not equivalent.
  • NPDA is more expressive.

NPDA -X-> DPDA

• Assume

  • DPDA_1 accepts
  • DPDA_2 accepts

• We can have an NPDA that accepts .

• How about a DPDA that accepts ? How do we know which one to use between DPDA_1 and DPDA_2?

Next Week

• We will see various ways to perform parsing.
• Ultimately, we will land on a parsing algorithm that is quite similar to DPDA.

Science and Engineering

• Tony Hoare (Turing Award Laureate, 1980) once mentioned something like this:
  • Engineers seek the 'it works' moment, and scientists seek the 'Aha' moment.
